4 Gigabit RJ-45/SFP Combo Ports |
2 USB 2.0 ports
|
1 RJ-45
|
Expansion Slot reserved for future use
|
Maximum Access Points per Unit: 64/ 2561* (default/ upgrade)
|
Maximum Access Points per Peer Group: 256/ 10241* (default/ upgrade)
|
Concurrent Captive Portal Authentication Users: 3072
|
Model of Managed APs: DWL-8610AP, DWL-8600AP, DWL-6600AP, DWL-3600AP, DWL-2600AP
|
AP Discovery & Control: Layer-2, Layer-3
|
AP Monitoring: Managed AP, Rogue AP, Authentication Fail AP, Standalone AP
|
Client Monitoring: Authenticated Client, Rogue Client, Authentication Fail Client, Ad-hoc Client
|
Centralized RF/ Security Policy Management: Supported
|
Fast Roaming: Supported
|
Intra-controller/ Inter-controller Roaming: Supported
|
Intra-subnet/ Inter-subnet Roaming: Supported
|
Wireless Security: WPA Personal/Enterprise, WPA2 Personal/Enterprise
|
Wireless Intrusion Detection & Prevention System (WIDS): Rogue and Valid AP Classification, Rogue AP Mitigation
|
LAN Security: 802.1x port-based access control and guest VLAN
|
Authentication: Captive Portal, MAC Authentication
|
VLAN Group: Up to 255 entries
|
802.1q VLAN Tagging: Supported
|
Subnet-based VLAN: Supported
|
Port-based VLAN: Supported
|
Permanent Account Authentication Method: Local Database, External RADIUS, External LDAP, External POP3, External Windows Active Directory (wired only)
|
Temporary Account Authentication Method: Local Database
|
Temporary Account Creation: Single or batch account generation by system with customized active or usage expired time
|
Payment Gateway: Authorize.net, Paypal, SecurePay, World Pay
|
Web-based User Interface: HTTP
|
Command Line: Supported
|
SNMP: v1, v2c, v3
|

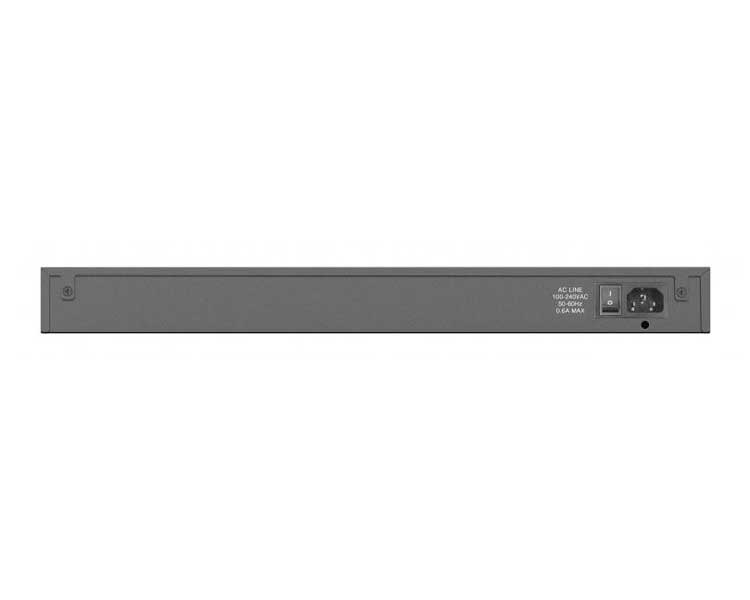

Power Supply: 100-240 V AC, 50-60 Hz Internal power supply
|
Max. Power Consumption: 26.95 W
|
Dimensions: 17.3 x 12.2 x 1.73 inches (440 x 310 x 44 mm)
|
Compatible D-Link Wireless Access Points: DWL-8610AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n/ac, DWL-8600AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n, DWL-6600AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n, DWL-3600AP Unified Concurrent Single-band Access Point 802.11b/g/n, DWL-2600AP Unified Concurrent Single-band Access Point 802.11b/g/n
|
Compatible D-Link Business Wireless Plus License: DWC-2000-AP32-LIC Enable management of 32 additional APs, DWC-2000-AP64-LIC Enable management of 64 additional APs, DWC-2000-AP128-LIC Enable management of 128 additional APs
|
* The number of additional APs available for management depends on your license type
|
